Calibration of dimensional measurands
In our dimensional calibration laboratory we calibrate your length measuring equipment with the highest precision. These include indicating test equipments, measuring standards, test equipments and angles.
In order to ensure the measurement results, our premises are air-conditioned to a temperature of 20 °C ± 1 K. This ensures standard-compliant and reliable calibration in our dimensional laboratories. For the calibration of test equipment blocks, even rooms with a temperature range of 20 °C ± 0.5 K are available.
Characterized by a high number of calibrations per day, many processes are optimized and automated in order to relieve the time-consuming manual calibration process. Our laboratory has a fully automated measuring robot, which calibrates calipers for you within a very short time, with very low measurement uncertainties. In addition to the normative calibration scope such as external, internal, depth and step measurements, the light gap tests and ease of movement tests are also carried out fully automatically with the calibration robot, thus relieving the manual calibration process.
For the calibration of thread rings and thread mandrels, several thread scanners are used in order to be able to make statements on the pitch and flank angle in addition to the usual pitch diameter. For the area of dial test equipments, several fully automatic dial test equipment test stations are in use, which determine process-reliable and reproducible measured values via a camera system without operator influence. Furthermore, we are optimally equipped for the calibration and measurement of your individual workpieces, test equipments, assemblies and much more.

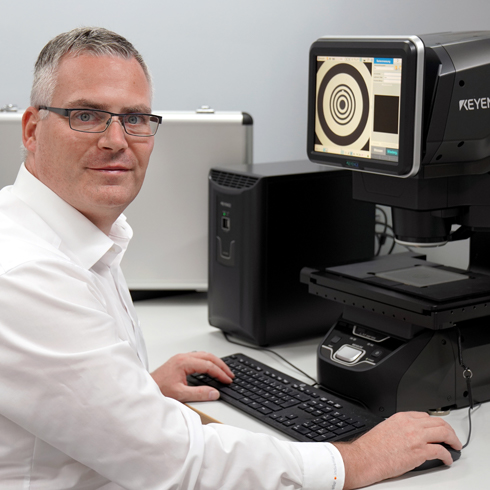

Furthermore, our long-standing exclusive partnership with the manufacturer Keyence distinguishes us. This gives you the opportunity to carry out accredited calibrations of optical measuring instruments directly at your premises with minimum downtime.
Your advantage: Our competence
- Extensive calibration portfolio
- Fully automated measuring robot
- 2D/3D coordinate measuring technology and CT scanning
- KEYENCE Exclusive Partnership

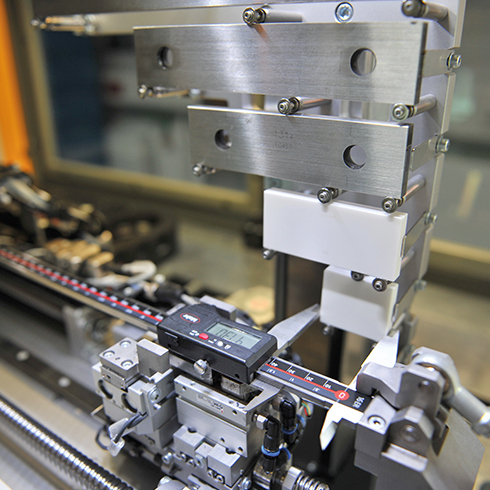

Measuring robot for calipers
The vernier caliper is one of the oldest testing devices in industry and can even be found in the private sphere. Due to the high number of calibrations per day, many processes are optimized and automated in order to relieve the time-consuming manual, very operator-dependent calibration process.
Our laboratory has a fully automated measuring robot, which calibrates calipers for you within a very short time, with very low measurement uncertainties. In addition to the normative calibration scope such as external, internal, depth and step measurements, the light gap tests and ease of movement tests are also carried out fully automatically with the calibration robot up to a measuring range of 300 mm.
At our measuring robot for calipers we are specialized in the following test equipment:
- Vernier caliper
- Caliper with numerical display

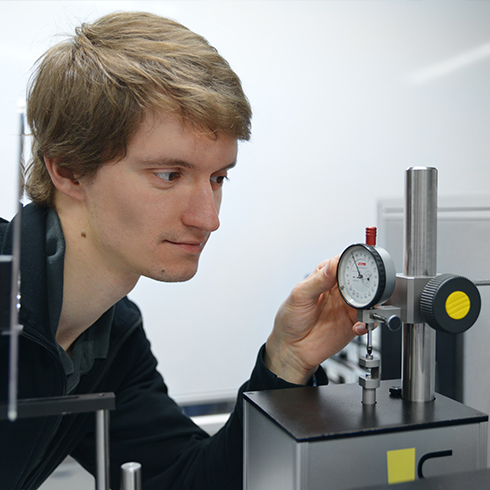

Dial test equipment test station
The dimensional laboratory of Testo Industrial Services has several fully automatic dial test equipment test stations.
The dial test equipment test stations are characterized by a process-safe camera reading. This enables the calibration of analogue and digital dial test equipments and many other indicating test equipment up to 100 mm in shortest processing time and with highest precision.
At our dial test equipment test station we are specialized in the following test equipment:
- mechanical and digital dial test equipments
- Fine pointer
- Lever test equipments
- Incremental probe
- Inductive probes
Horizontal linear encoders
Several horizontal linear encoders with a maximum length of up to 1000 mm for external measurements or up to 800 mm for internal measurements are used in the dimensional laboratory of Testo Industrial Services as reference measuring equipment for the calibration of length and dimensional standards.
Our qualified personnel carry out the calibration of cylindrical and tapered external, internal and thread measurements.
At our length measuring devices we are specialized in the following measuring devices:
- cylindrical and tapered plug test equipments
- cylindrical and tapered ring test equipments
- cylindrical and tapered thread plug test equipments
- cylindrical and tapered thread ring test equipments
- Test pins
- Adjustment dimensions
- Feeler test equipments
Angle and degree measuring station
Straight edges and 90° angles are mostly used in manufacturing and control areas of companies. Measurements to directly check the product quality are commonplace. Therefore, regular calibration of this measuring equipment is crucial.
A specially developed calibration device on a hard stone plate ensures the highest accuracy during calibration.
At our angle and degree measuring station we are specialized in the following measuring instruments:
- 90° stop and flat angle, hair angle
- Straight edge
- Flat rulers
- Angle standard
Test equipment block test station
Parallel test equipment blocks are mostly used for checking calipers, outside micrometers, dial test equipments or as high-precision measuring standards. To ensure that the measuring equipment provides representative and reliable measured values, regular calibration of these test equipment blocks is recommended. Testo Industrial Services, as a recognized calibration laboratory, has the competence and the corresponding accredited test equipment block test stations.
We calibrate for you in conformity with standards according to VDI/VDE/DGQ 2618 sheet 3.1 in a measuring range from 0.5 mm to 150 mm.
At our test equipment block test station we specialize in the following measuring instruments:
- Test equipment blocks in steel
- Test equipment blocks in ceramics
- Test equipment blocks in tungsten carbide (carbide)
Tape measure test station
The tape measure test stations in the dimensional laboratory of Testo Industrial Services give you the opportunity to have your tape measures, folding rulers, scales, draw wire sensors etc. calibrated by us. Any length up to 100 m can be calibrated by sectional testing.
A conversion device also allows the linearity of potentiometric displacement transducers to be determined.
At our tape measure test station we are specialized in the following measuring instruments:
- Tape measures
- Folding rulers
- Roll tape dimensions
- flexible steel rods
- Working scales
- Line scales
- Displacement cable tension transducer
At our displacement sensor measuring station we calibrate your displacement cable sensors, rod potentiometers and laser triangulation sensors. As the number of electronic displacement sensors increases, the individual test positions are approached fully automatically with a linear motor axis at high speed in order to determine the linearity of the sensors according to the respective manufacturer's specifications.
The axis has a total travel of 1200 mm and a highly accurate electronically controlled positioning for approaching the individual measuring steps.
At our displacement sensor measuring station we are specialized in the following measuring devices:
- potentiometric draw-wire sensors
- Rod potentiometer
- Laser triangulation sensors
In the industrial environment, a tightly fitting screw connection is unavoidable. Many thread types and diameters are used. In addition to the simple pitch diameter, which is often tolerated by standards, other parameters such as the pitch, the flank angle, but also the core or outer diameter can be decisive for a tight and secure threaded connection.
We at Testo Industrial Services calibrate a large number of your thread ring test equipments or taper thread ring test equipments with our thread scanner. High-precision contour scanning of the entire thread profile enables process-relevant statements to be made.
At our thread scanner we are specialized in the following measuring devices:
- Thread ring test equipments
- Thread plug test equipments
- Taper thread ring test equipments
- Taper thread plug test equipments
Many test equipments are often flat, sensitive or small and can only be measured tactilely by probing to a limited extent. Optical measuring microscopes, on the other hand, often reveal things that can only be guessed at by the human eye can only guess at. With our long-standing and exclusive cooperation with the measuring instrument manufacturer Keyence, Testo Industrial Services ensures the accuracy of your optical measuring instruments and, in addition to the calibration and adjustment programs agreed with the manufacturer, also carries out accredited calibration directly on your premises.
At our measuring microscopes we are specialized in the following measuring instruments:
- Radius test equipments
- Tapping test equipments
- optical measurements according to customer drawings
- accredited calibrations for optical measuring microscopes and profile projectors

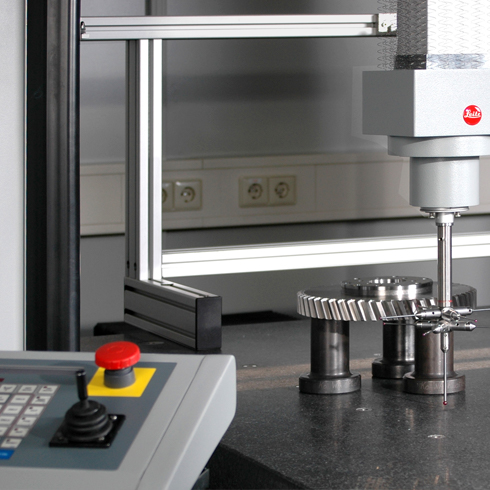

Coordinate metrology and 3D scanning processes
Testo Industrial Services GmbH has a large number of high-precision coordinate measuring machines which are suitable for testing standard geometries and special geometries. These include special test equipments, gear wheels, gearbox housings, turbine blades, cylinder worms and much more. In addition to the calibration of your dimensional, form and positional tolerances according to the geometric product specifications (GPS), we offer the inspection equipment monitoring of your test equipments, master parts (setting masters), inspection fixtures and other traceable inspection equipment. This calibration scope is rounded off by the option of measuring your complete clamping fixtures and assemblies to the ideal dimension and adjusting them if necessary.
At our coordinate measuring machines we are specialized in the following measuring devices:
- Gradient test equipments
- Gear test equipments
- Special thread test equipments (internal and external)
- Setting rings and setting mandrels
- Calibration standards
We support you in your projects and are committed to your goals. Here you will find an excerpt from the references of our successful projects:
Our know-how summarized for you:
In our Knowledge-Centre you will find helpful know-how from our experts on dimensional calibration, or dive into interesting technical articles about calibration.
Our scope of services for you
Our scope of services includes standard ISO calibrations as well as accredited DAkkS calibrations. Here you will find an excerpt of the services we offer in our laboratories and at your site.
|Measured variable Indicating test equipments: Calipers, micrometers, dial test equipments, dial indicators, lever test equipments, etc.||Calibration DAkkS-accredited||On-site calibration|
|Caliper for outside, inside, depth and step measurements|
|Depth calipers, height calipers, height test equipments|
|Micrometers, micrometer heads, depth test equipments, precision micrometers|
|3-line inside micrometers, 2-point inside micrometers with extensions|
|2-line inside micrometers|
|External rapid tracers, internal rapid tracers; thickness test equipments|
|Dial test equipments (mechanical, digital); edge finder; fine indicator; feeler lever measuring device|
|Inductive probes, incremental probes|
|Electronic displacement sensors, displacement cable transducers, laser triangulation sensors|
|Measured variable Measuring standard: Test equipment blocks, test pins, thread measuring wires, setting test equipment, etc.||Calibration DAkkS-accredited||On-site calibration|
|Parallel test equipment block made of steel/ceramic/tungsten carbide|
|Test pins - single or in sets|
|Thread Measuring Wires|
|Setting test equipment for outside micrometers, thread micrometers and height test equipment|
|Measured variable Test equipments: Limit plug test equipment, thread limit plug test equipment, test pins, adjusting ring, etc.||Calibration DAkkS-accredited||On-site calibration|
|Plug test equipments, plug test equipments and plug test equipments for rejects|
|Limit snap test equipment|
|Thread limit plug test equipment, thread good plug test equipment and thread reject plug test equipment|
|Boundary test equipment, good test equipment and reject test equipment|
|Setting ring, good ring test equipment and reject ring test equipments|
|Feeler test equipments|
|Taper thread plug test equipment, taper thread ring test equipment, taper plug test equipment and taper plug test equipments|
|Radius test equipments and tapping test equipments|
|Measured variable Rulers / Angles / Scales: Angles, protractors, flat rulers, tape measures, yardsticks, etc.||Calibration DAkkS-accredited||On-site calibration|
|90° hair angle, stop angle and flat angle, centering angle|
|Universal protractor, clinometer|
|Measuring tapes, tape measures, flexible (steel) scales/rulers, tape measures for outside and inside diameters, working scales|
|Other length measuring equipment: Measuring microscopes, special test equipments, inclinometers, etc.||Calibration DAkkS-accredited||On-site calibration|
|Horizontal levelers, frame levelers and inclinometers|
|Special test equipments according to customer drawings with optical or tactile probing|
|Measuring microscopes and profile projectors|
|Roughness or surface measuring instruments|
|Coating thickness test equipments and coating thickness foils, ultrasonic thickness test equipments|
|Thread limit test equipment|
|Hole test equipments|
|Test plates made of hard stone|
Take a look at our topic-specific brochures and learn more about calibration and test equipment management:
